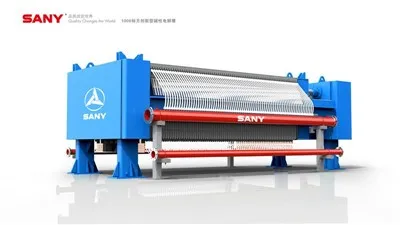

Square Reka Bentuk Elektrolisis Sistem

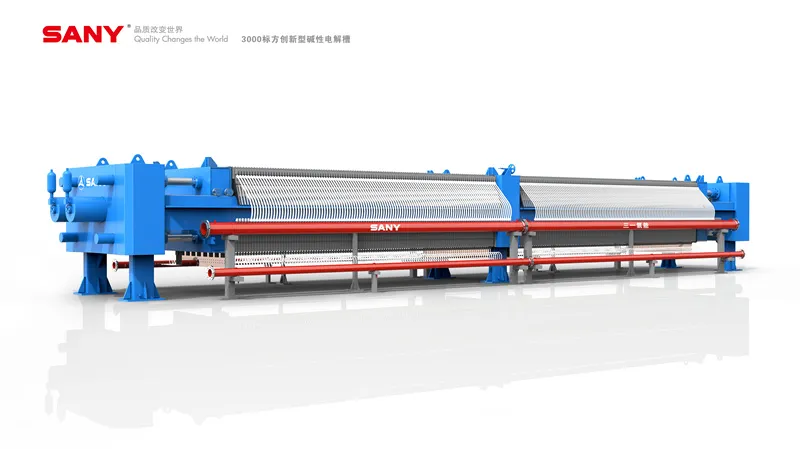

3000 Nm³/h Square Alkali Air Elektrolisis

① Easy to operate and maintain

Sealed by hydraulic extrusion, disassembled and assembled on site, and quick maintenance time

② Modular design

Bebas ruang tunggal unit, expandable single cells, and connectable multiple cells

③ Low power consumption

Zero-gap design, pure nikel electrodes, and high conductivity

④ Tinggi kebolehpercayaan

Double safety insurance with hydraulic automatic control and multi-point mechanical locking, high-strength mechanical support frame, and independent liquid inlet and outlet of the single chamber to ensure uniform temperature field

1. Hidrogen pengeluaran kapasiti: 3000 Nm³/h

This Square AWE equipment has a huge hydrogen production capacity of up to 3000 Nm³/h, which can provide powerful support for application scenarios with high demand for hydrogen energy and reliable guarantee for large-scale applications in the hydrogen energy industry.

2. DC power consumption: 4.1-4.3 kWh/Nm³

Efficient energy conversion is one of the critical indicators to measure the quality of alkaline water electrolyzers. The DC power consumption of this electrolyzer is controlled at 4.1-4.3 kWh/Nm³, realizing efficient use of energy, effectively reducing the energy cost of hydrogen production, and meeting the concept of sustainable development of clean energy.

3. Ketulenan daripada hidrogen sebelum pemurnian: more than 99.8%

At the initial stage of hydrogen production, this Square AWE equipment ensures that the purity of hydrogen before purification is more than 99.8%. The high purity lays a foundation for subsequent deep purification of hydrogen and ensures that hydrogen quality meets a wide range of application standards.

4. Ketulenan daripada hidrogen selepas pemurnian: up to more than 99.999%.

Berasaskan on the advanced purification technology, the electrolyzer can achieve the purity of hydrogen of more than 99.999% after hydrogen purification. The high-purity hydrogen can be widely applied in fuel cells, power and other fields, fasilitating the promotion of clean energy.

5. Working pressure: 0.5 MPa

The working pressure of this Square AWE equipment is 0.5 MPa, which ensures that the equipment can run safely and be adaptable to diverse hydrogen application scenarios, making it more widely used in different fields.

6. Bekerja suhu: 85±5 darjah

The working temperature of this Square AWE equipment is maintained at 85±5 degree , which ensures the favorable temperature environment for hydrogen production, fasilitating the improvement of hydrogen production and quality, and ensuring the stable operation of the equipment.

7. Power fluctuation range: 10-120%

Ini electrolyzer has a wide power fluctuation range, which can run stably within the power fluctuation range from 10% to 120%, making it adaptable to diverse power supply conditions and more reliable.

8. Duration of a cold start Less than or equal to 35min, and duration of a hot start Less than or equal to 5min

It only takes electrolyzer 35 or 5 minutes to finish a cold start or a hot start times, respectively, making it adaptable to application scenarios where frequent starts and stops are required.

9. Ditetapkan perkhidmatan hayat: 8000 jam

This Square AWE equipment has been strictly designed and tested with a designated service life of up to 8000 hours, which not only reduces the frequency of equipment replacement, but also lowers maintenance costs, providing users with a reliable experience.

Kelebihan

■ We have the advantage in the large-scale hydrogen production from wind, solar and green power. To meet the demand for new scenario of large-scale hydrogen production from wind, solar and green power, we have developed the hydrogen production equipment with a capacity of 1,000 Nm³/h and the all-in-one hydrogen production system made of four 1,000 Nm³/h units by selecting core materials such as highly active and stable electrodes, membranes with high air tightness and low surface resistance, modified PTFE sealing gaskets, and using CAE simulation for the analysis and optimization of the flow field structure of the electrolyzer, of which the key parameters rank top in China. In 2023, we won a bid for Da'an Wind and Solar Green Hydrogen Synthesis Ammonia Integration Demonstration Project of Jilin Electric Power Co., Ltd. , which involved two all-in-one hydrogen production systems made up of four 1,000 Nm³/h units each, as a significant supporting force for the operation of the Project.

■ We have the advantage in independently developed and manufactured BOP systems. We conduct the R&D and design of BOP system on the basis of chemical engineering calculation data, which aims for easy installation, reliable operation, safe work, and a shorter period of installation, to ensure that the BOP system is highly adaptable to fluctuating operating power during the hydrogen production. The development and experimental verification of 100 to 6,000 Nm³/h separation and purification systems are completed, which are applied in a number of market projects. Customized BOP system services are available to meet the specific needs of customers.

■ We have built and put into operation a 20MW-class all-in-one electrolyzer testing platform covering performance testing, control optimization, reliability verification and other functions, which has passed HAZOP, SIL, QRA and other safety assessments and lightning protection risk assessment. This platform can fully meet the needs for comprehensive tests of alkaline electrolyzers and BOP systems, which has run for thousands of hours in total, providing important data support for the prompt verification and iterative upgrading of electrolyzers, BOP systems and auxiliary equipment products.

■ We have the advantage in intelligent manufacturing of large-scale equipment. Bergantung on the advantages of SANY Group in intelligent manufacturing and quality assurance systems, we have built automated production lines for 2GW electrolyzers, being the first to make a breakthrough in the core processes of automatic feeding, automatic argon arc welding, automatic resistance welding, pipe prefabrication and high-precision stacking, which has ketara improved the manufacturing quality of hydrogen equipment. We have established a comprehensive manufacturing process standard guidance system covering the entire process of hydrogen equipment manufacturing to ensure that the process meets the regulatory requirements.

■ We have the advantage in synergy of wind power, solar power, hydrogen, stations and vehicles. As guided by the low-carbon strategy of SANY Group, SANY Hydrogen Energy (hydrogen production equipment and hydrogen refueling equipment) works closely with SANY Renewable Energy (wind power and large-scale hydrogen production from green power), SANY Silicon Energy (photovoltaics) and SANY Heavy Truck (elektrik kenderaan dan hidrogen fuel cell electric vehicles) to form a closed loop of the low-carbon industry. SANY Hidrogen Tenaga are not only mampu of R&D and manufacturing of hydrogen energy equipment, but also accessible to big data of wind power and photovoltaic power, laying a solid foundation for the development of the hydrogen production system from green power, and continuous upgrading of cluster control strategy, which facilitates proprovideing customers with more sophisticated and economic solutions for integrated green hydrogen pengeluaran dan utilization to promote the high-quality development of the the entire industry.
